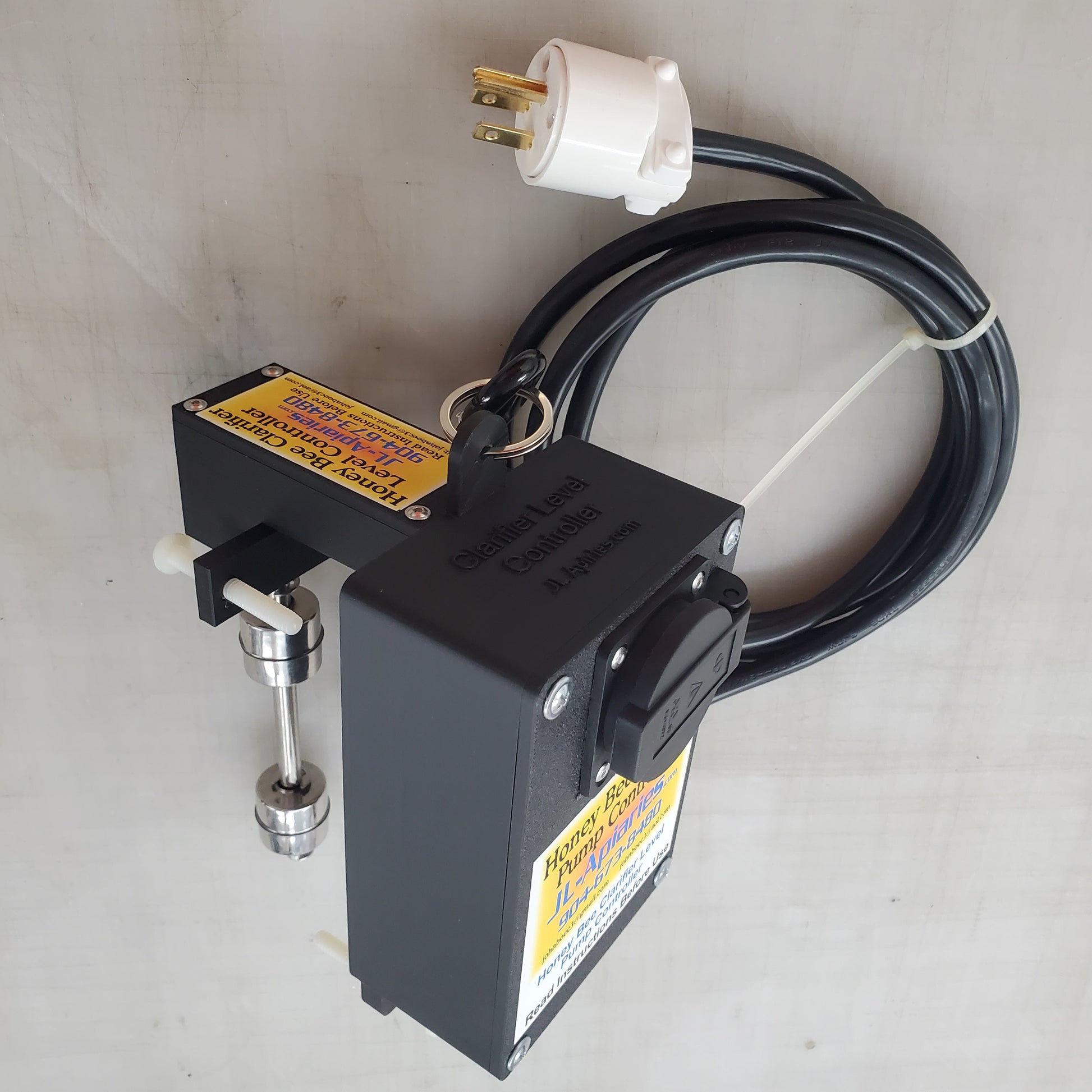

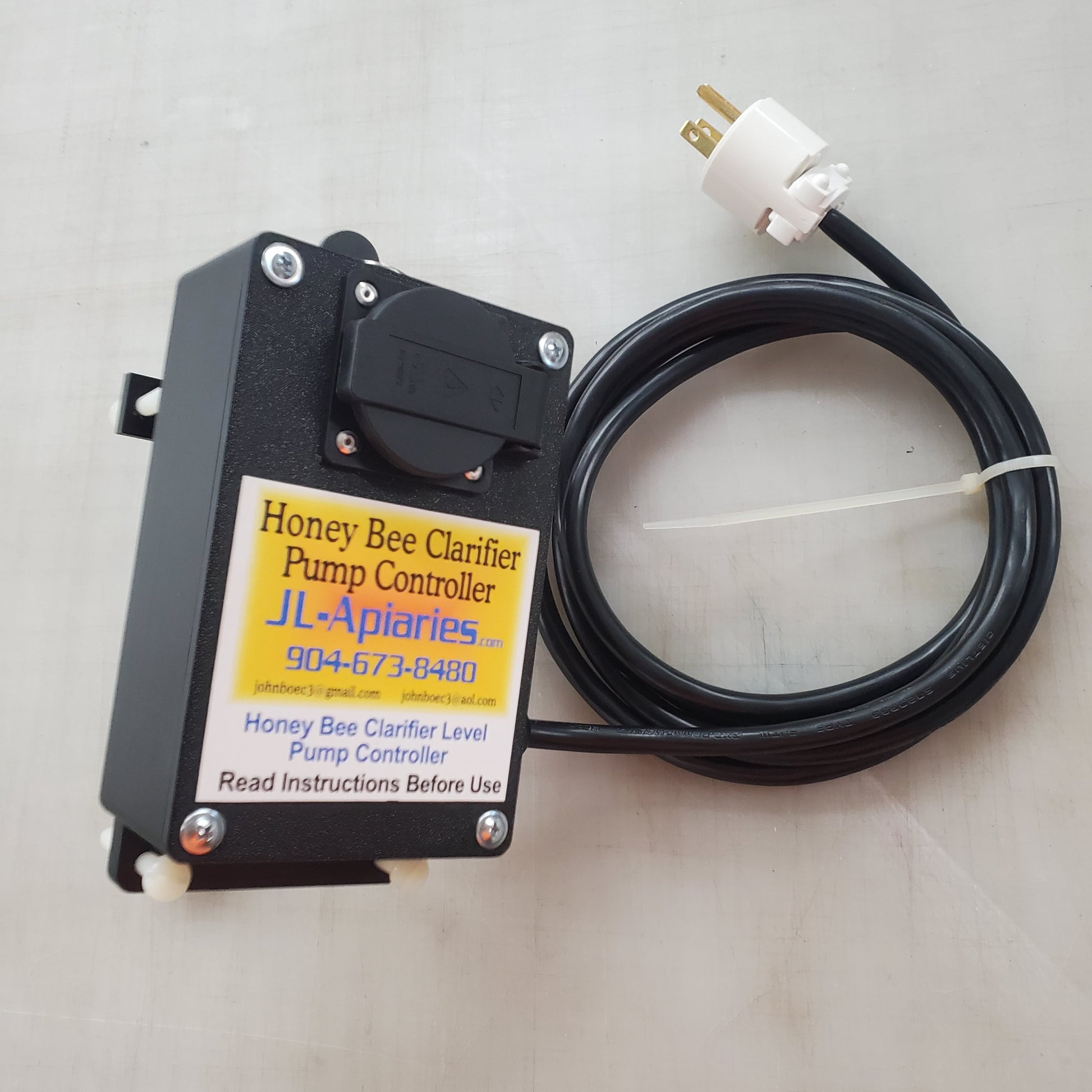

6- Controller for Clarifier or Container from Extractor

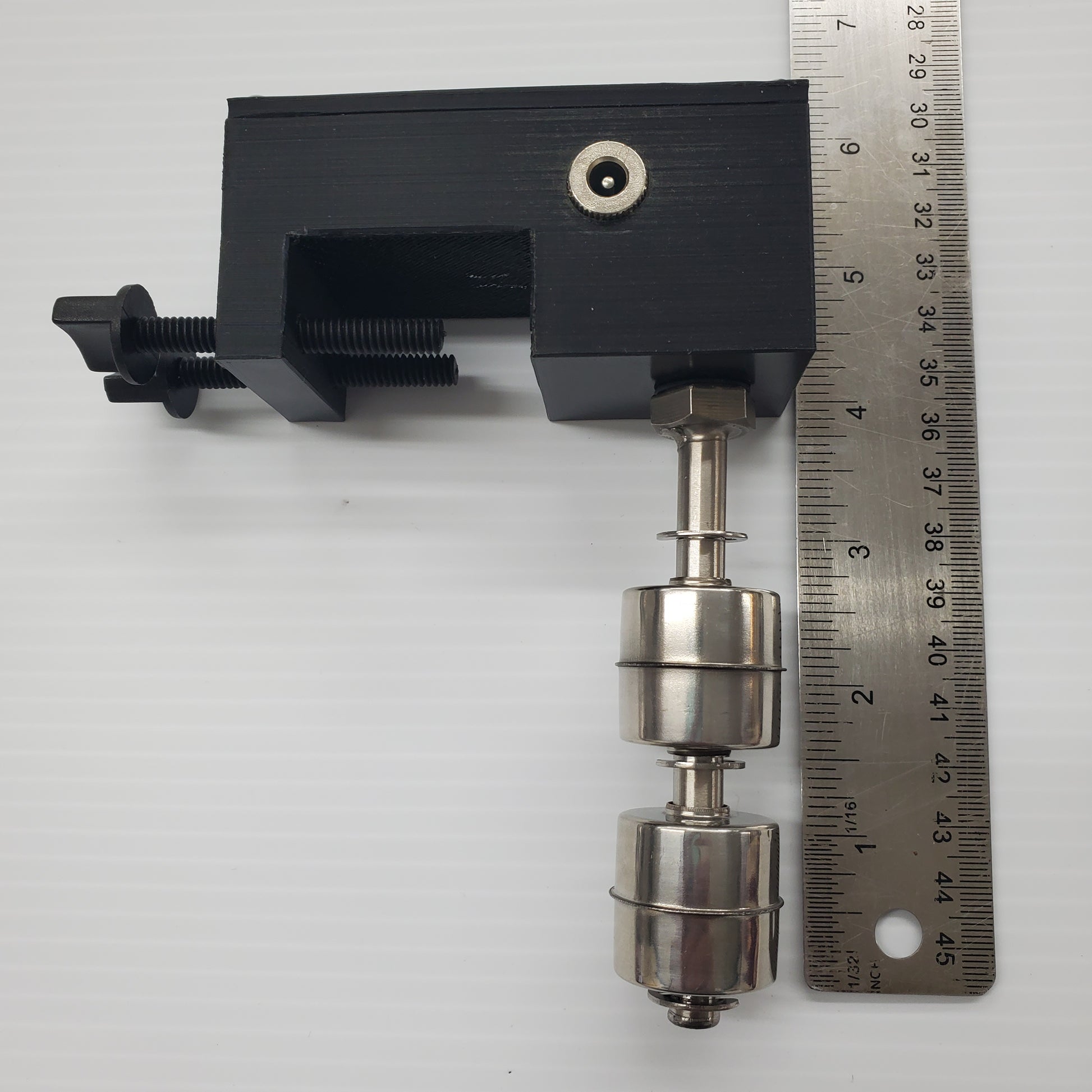

This clarifier controller will control the level of the honey in your clarifier or extractor container. It will maintain a level between 2 3/4" and 6 3/8" from top, allowing the clarifier to continue to clarify honey. It has been designed to work with clarifiers between 10" to about 12" deep over all but will work with deeper ones.  When the level of the honey gets within 2 3/4" of top of clarifier (top float) it will turn on your honey pump and pump the level down to 6 3/8" from top of the clarifier (bottom float). It will then shut down the pump until it is signaled to pump again. Be sure the pump is connected a large enough storage tank.

Hang the controller over the clarifier and by hand snug up the screws to hold its position. The lower screws are used to keep the controller level. Be sure the floats are not in contact with anything. Then plug this controller in a 110-volt outlet. Now plug the 110-volt pump into it. You're all set to stop overflowing your containers. Clean floats after use to be sure they move freely. When not in use just drape cord through the carabiner and hang from shelf or hook.

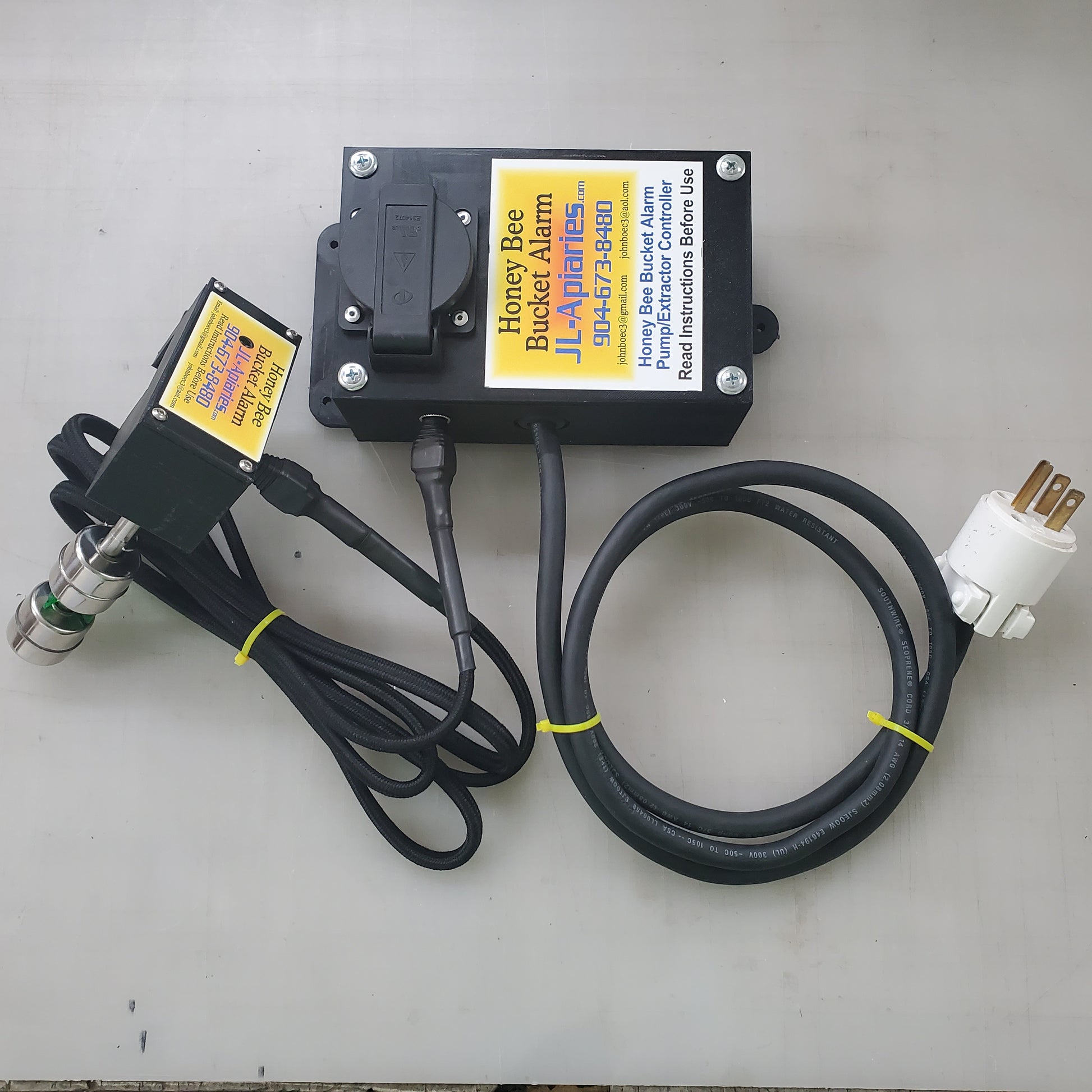

For complete protection purchase the complete system which includes this controller. The complete system has an additional controller to protect the storage container from being overfilled as well.
